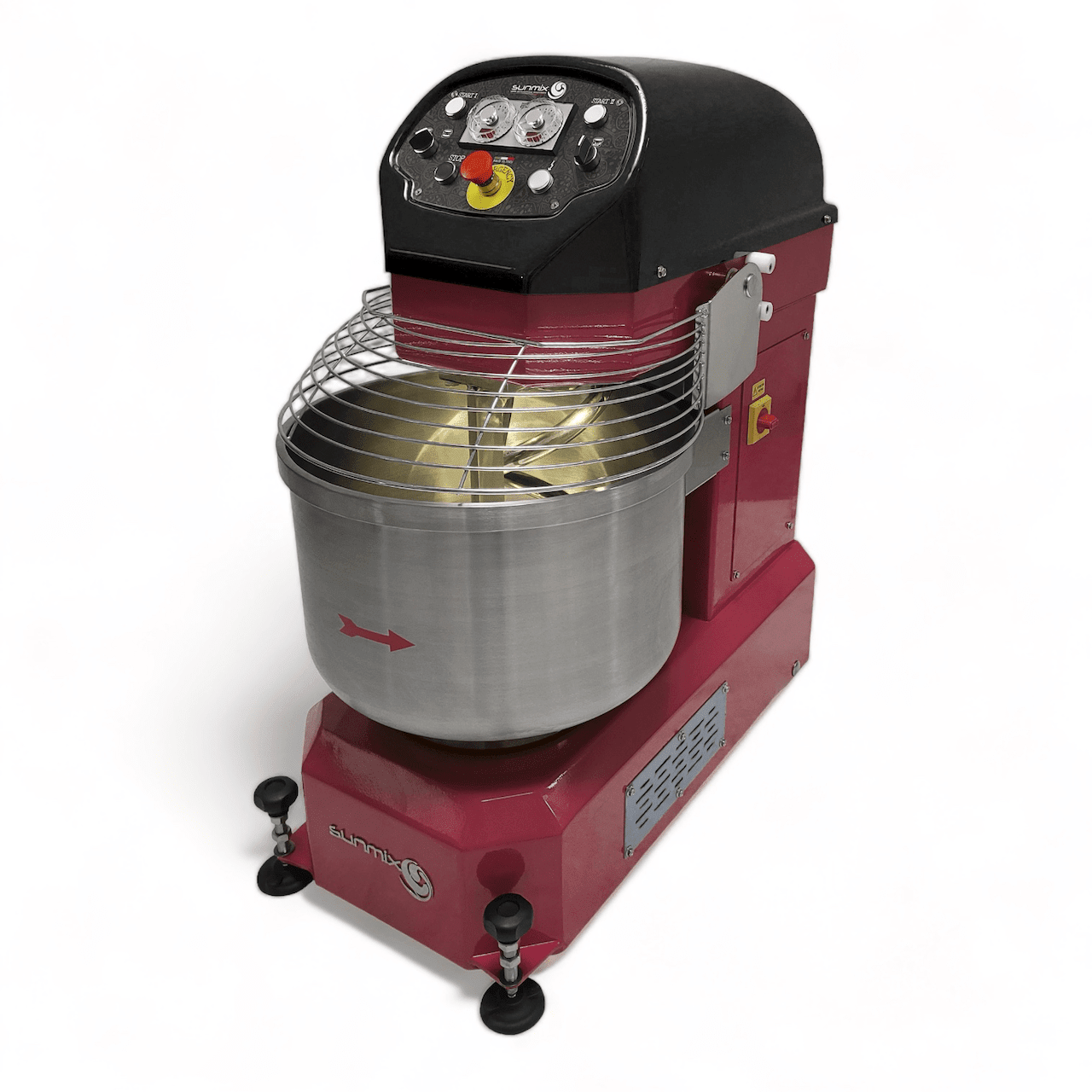

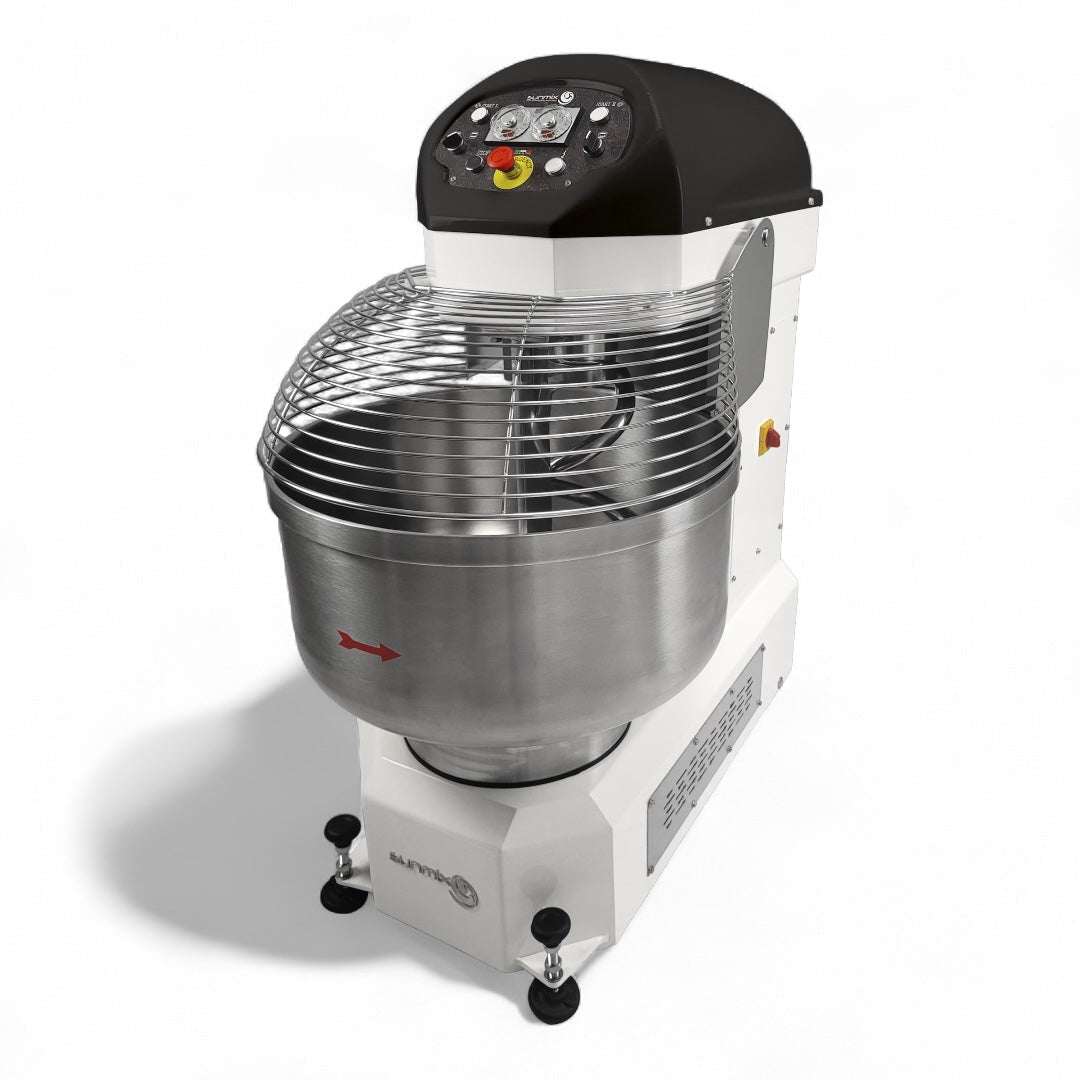

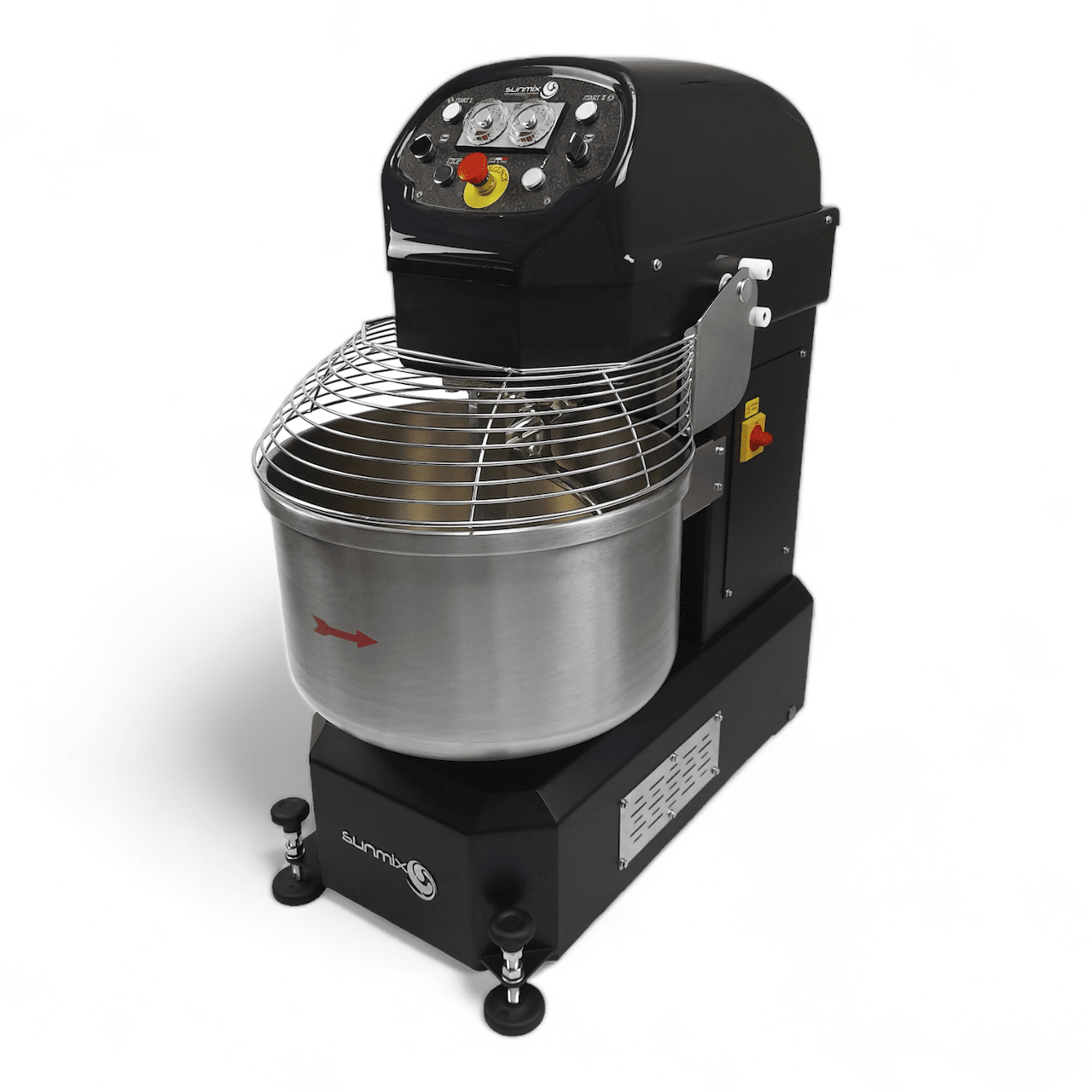

Sunmix Classic 160kg Spiral Dough Mixer Bakers Spec

Sunmix Classic Line 160kg Spiral Dough Mixer - Bakers Spec

The Classic Line 160 Bakery Specification is fitted with Sunmix's reduction kit for lower-hydration dough. It combines a robust two-motor drive with simple manual controls, two speeds, two timers and a reversible bowl for consistent daily bakery and pizzeria production.

The stainless steel bowl, spiral and breaking bar, retractable castors and heavy-duty construction are designed for reliable long-term use. The mixer can also process smaller batches when required.

---

Key Specifications

Dough Capacity: 160 kg

Flour Capacity: 100 kg

Bowl Volume: 266 litres

Power Supply: 400V, 50-60Hz, 3 phase

Motor Configuration: 2 motors

Spiral Motor: 5.0/8.0 kW

Bowl Motor: 0.75 kW

Spiral Speeds: 90/180 rpm

Bowl Speed: 14 rpm

Hydration Range: 50-100%

Control System: Manual control panel with 2 timers

Bowl Functions: Reversible bowl and bowl jog

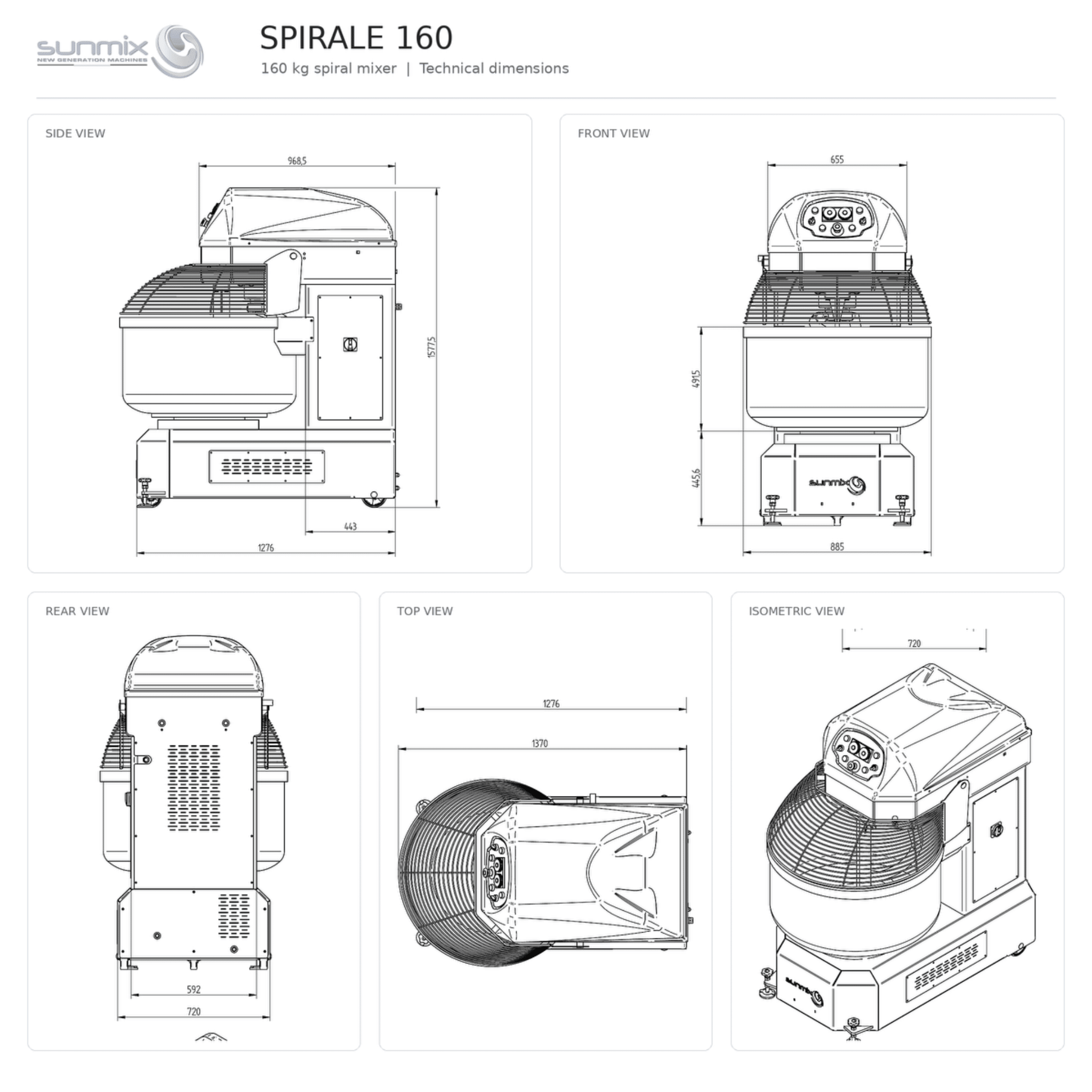

Dimensions (W x D x H): 87 x 143 x 157 cm

Weight: 660 kg

Safety: Wire bowl guard and emergency stop

Installation: Must be installed and commissioned by a qualified professional

Rotation Direction: Check the arrow on the bowl. The correct direction for the bowl and spiral is anti-clockwise when viewed from above.

Standard Colours: White, red or black

Delivery: Free kerbside delivery included. In-stock machines normally dispatch on the selected service; backordered machines have an approximate 40-working-day lead time.

Warranty: 12 months parts and labour. Parts only on international sales.

---

Downloads

---

Please see our Sunmix Use, Capabilities & Expectations.
